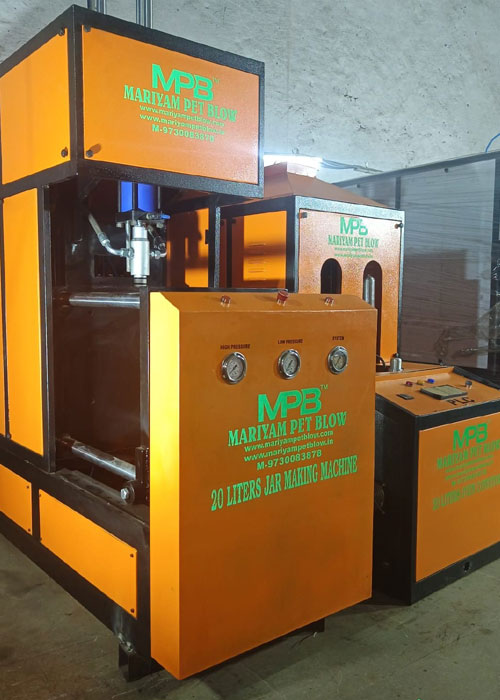

SINGLE CAVITY - JAR MACHINE

MPB-A-1C SINGLE CAVITY - JAR MACHINE - 20 LTRS.

SINGLE CAVITY - JAR MACHINE APPLICATION - 20 LTRS.

This system is ideal for start-up and small-scale companies and is reliable, heavy duty, and capable of producing a wide variety of high quality P.E.T. bottles for many industries like water, alcohol, juice, liquid detergent, vegetable oil, cosmetics, pharmaceutical and personal care items which are just a few examples.

HOW SINGLE CAVITY - JAR MACHINE WORKS - 20 LTRS.

The PET Blow Molding system does not require highly trained operators to produce consistent quality bottles. The bottle making process starts by loading preforms into the preheater. The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance. When the preforms have made one "trip" through the preheater, they are manually loaded single at a time into the PET Blow Molder. After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use.

MPB-A-1C SINGLE CAVITY - JAR MACHINE TECHNICAL SPECIFICATION - 20 LTRS.

SN Machines Specifications
01. Production capacity of Machine BPH – 90 – 110
02. Bottle Product capacity 20 LTRS
03. Bottle Product neck diameter 54 MM
04. Operating Low Pressure 10 Kg
05. Operating High Pressure 26 Kg
06. Clamping force 20 Ton (Hydro-Pneumatic Cylinder)
07. Opening Strokes 350 mm (Hydro-Pneumatic Cylinder)
08. Heating Power Heater – 18 Nos

Related Product

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Duis dictum tempus velit et tincidunt. In suscipit tempor interdum. Vestibulum porta mollis eros.

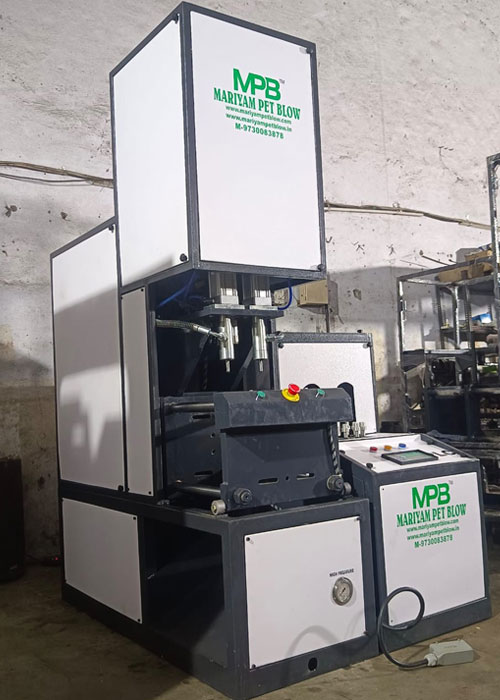

2 CAVITY - AUTO DROP MACHINE

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Phasellus id eleifend purus.

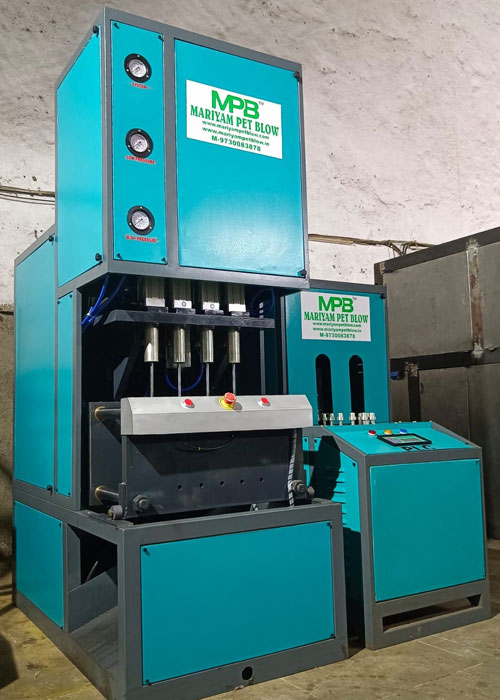

4 CAVITY - AUTO DROP MACHINE

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Phasellus id eleifend purus.

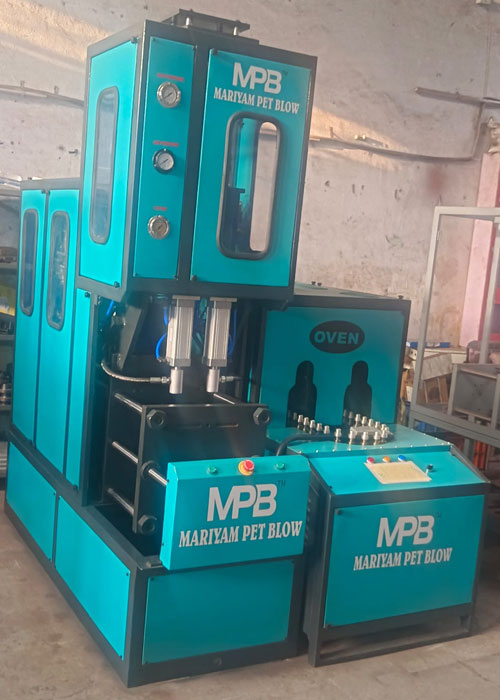

2 CAVITY - SEMI MACHINE

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Phasellus id eleifend purus.

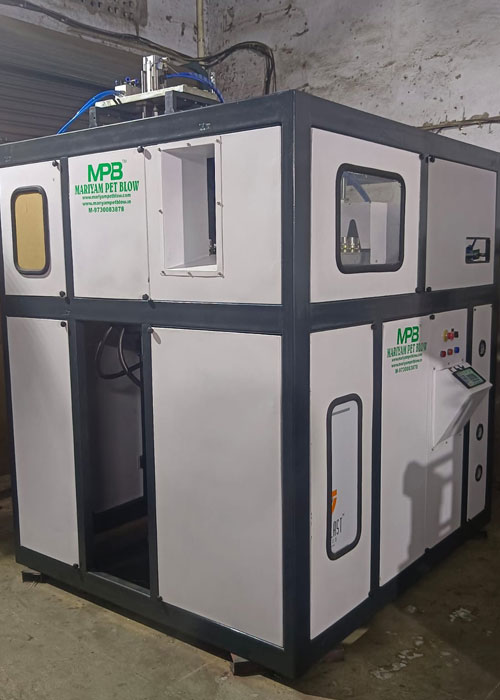

2 CAVITY - AUTOMATIC MACHINE
